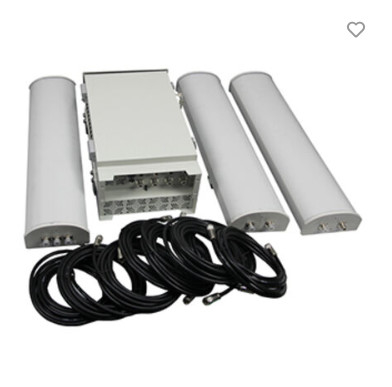

7 Bands Mobile Phone Prison Jammer System 4G Waterproof Outdoor

7 Bands Mobile Phone Jammer + 4G Waterproof for Jail Project, Outdoor

758-803MHz: 30W

851-869MHz 30 W

869-894MHz 30 W

1930-1990MHz:20W

2110-2155MHz:20W

700-806MHz: 30W

2500-2690MHz: 20W

Total : 180 W

Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W,

4G 2620-2690MHz: 20W, LoJack 173MHz: 30W, 4G LTE USA phone 700-800MHz: 15W

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)

100% Safe VSWR over protection (Isolator) for each modular

Option: Remote Control 10-30m

Power supply:AC110 or 220-240V /DC 27V

Jamming RangeRadius 100~300 meters (-75dBm@ Antennas)

Weight22Kg

Dimension:520 x 340 x 200mm

Working time:Without the time limit, May continue to work,

AntennaExternal Omni 500mm long or Directional Patch Panel Antennas

Warranty:1 year

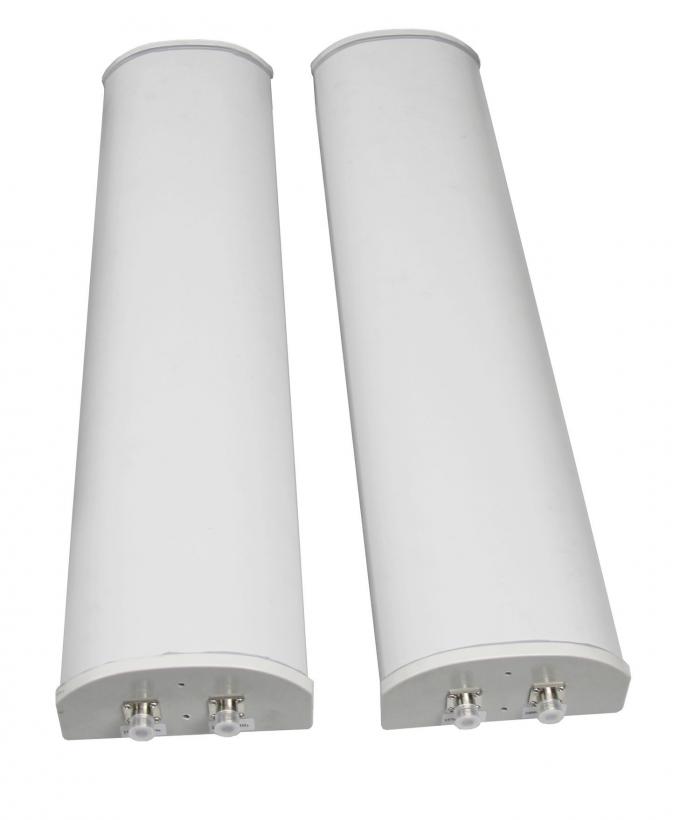

HIGHER GAIN DIRECTIONAL ANTENNA TWO BANDS IN ONE ANTENNA

ELECTRICAL SPECIFICATIONS

Frequency Range------------------------- 700-965/1710-2700MHz

Impedance---------------------------------- 50 Ohm

VSWR---------------------------------------- ≤1.5

Gain------------------------------------------- (700-965):2×10dBi (1710-2700):2×12dBi

Front to Back Ratio----------------------- ＞25dB

Polarization--------------------------------- ±45°

Horizontal 3dB Beam Width------------ (806-960):65° (1710-2500):65°

Vertical 3dB Beam Width--------------- (806-960):50° (1710-2500):30°

Maximum Input Power------------------- 200W

Lighting Protection------------------------ Direct Ground

Connector Place--------------------------- Bottom

Connector----------------------------------- N-Female

MECHANICAL SPECIFICATIONS

Dimensions(L/W/D)------------------------- 745*180*80mm

Rated Wind Velocity------------------------ 60m/S

Weight------------------------------------------ 6kg

Operating Temperature-------------------- -40℃-60℃

Mounting Hardware------------------------- ?40-?75mm

Radiating Element Material--------------- Zinc Alloy,Aluminum Alloy

Reflector Material--------------------------- Aluminum Alloy

Radome Material---------------------------- PVC

Radome Color-------------------------------- Gray
