Home > products > Anti Drone Module GaN > Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz

Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NX-MD10W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: The price is negotiable

Packaging Details: 25.6*111.7*17MM

Delivery Time: 3-5days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000pcs per Month

Get Best Price
Highlight:

wifi bluetooth jammers blockers Module

,

1170MHz wifi bluetooth jammers blockers

,

1280MHz rf jamming device

Model Number:
20W 1170-1280MHz
Type:
RF Module
Voltage:
28-32V
Size:
25.6*111.7 *17MM
Weight:
0.15KG
OEM:
Support
Quality Guarantee:
1 YEAR
Output Power:
10W 20W 30W 40W 50W 100W 200W
Model Number:
20W 1170-1280MHz
Type:
RF Module
Voltage:
28-32V
Size:
25.6*111.7 *17MM
Weight:
0.15KG
OEM:
Support
Quality Guarantee:
1 YEAR
Output Power:
10W 20W 30W 40W 50W 100W 200W
Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz

Description

Introducing the 20W 1170-1280MHz GAN Anti-Drone RF Module

Protecting your airspace has never been easier with our state-of-the-art 20W 1170-1280MHz GAN Anti-Drone RF Module. Designed to shield against unwanted UAV intrusions, this device is a must-have for anyone concerned about drone security.

Advanced Technology for Enhanced Protection

Equipped with cutting-edge GAN technology, our RF module delivers unmatched performance and reliability. With a frequency range of 1170-1280MHz, it effectively detects and intercepts drone signals, preventing them from entering your airspace.

Featuring a powerful 20W output, this module ensures a strong and consistent signal jamming capability, making it an ideal solution for both small and large areas. Whether you need to protect a private property, an event venue, or a sensitive facility, our RF module has you covered.

Designed for ease of use, our RF module can be easily integrated into existing security systems or deployed as a standalone device. Its compact size and lightweight design allow for flexible installation options, ensuring maximum coverage and effectiveness.

Don’t compromise on security. Invest in our 20W 1170-1280MHz GAN Anti-Drone RF Module and gain peace of mind knowing that your airspace is protected against potential threats. Contact us today to learn more about this innovative solution.

Test item Technical parameters Unit Remark





Frequency Range





420-5850





MHz





Customized Frequency

Operating Voltage 28 V 28-32V
Maximum Power Output 43±0.5 dBm 20W@≤1.8A
Gain 38±1 dB peak-to-peak value
In-band fluctuation ≤2 dB peak-to-peak value





Spurious Emission



Operating In-band

≤-15dBm/1MHz



dBm

Center Frequency add CW Signal to Maximum Power Output Test
Operating Out-of-ba nd 9KHz~1GHz



No noise wave above normal base

dBm
1G~12.75GHz dBm





Output VSWR

≤1.30   No power up:Standard Grid Output -10dBm
≤1.30   Power up:Dual Directional Coupler Test



high-low

temperature test

Operating Ambient

Temperature

-10~+55 Cold Start
Gain Stability ±1.5 @-40℃~+55℃ dB
Power Stability ±1 @-40℃~+55℃ dB
Power Supply Requirement ≥2A@+28Vdc;

Continuous Wave Output

20W

Power Supply Port

Power Cable:Red

positive Black negative

  Red positive Black negative
RF Output Connector SMA   SMA External Screw Base

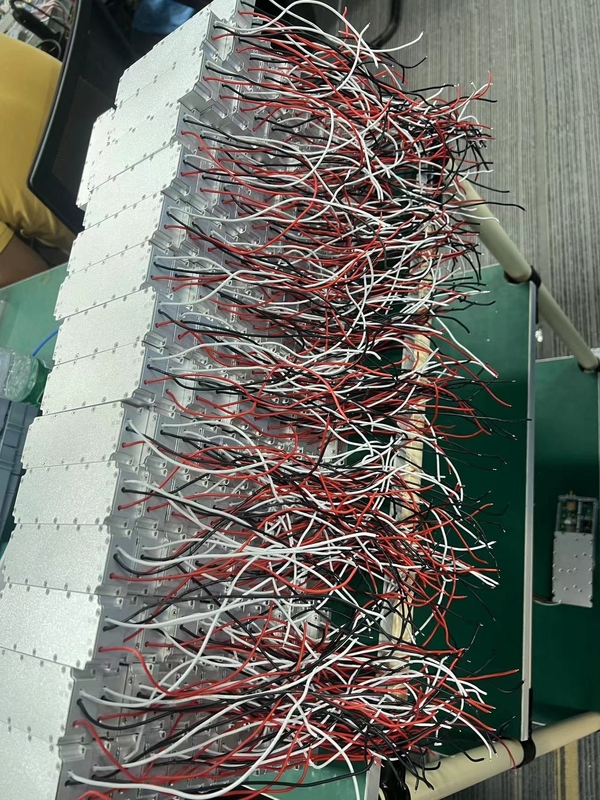

Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 0Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 1Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 2Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 3

Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 4Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 5

1. Light
Slim as a wisp of cloud, our module is effortlessly portable. Packed with efficient tech, it empowers with featherlight ease. Unleash freedom at your fingertips.
2. Adjustable
Our modules can adjust the frequency bandwidth within a small range
3. Copper heat sink
Utilizing copper heat dissipation blocks for rapid thermal conductivity and efficient heat dissipation. Ensures sustained, stable device operation with precise te
4. Isolator
Equipped with isolators, our product prevents circuit board damage from empty loads. Precision isolation design ensures safety and reliability, guarding against



Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 6Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 7Custom Wifi Bluetooth Jammers Blockers Module RF Jamming Device 1170MHz-1280MHz 8
