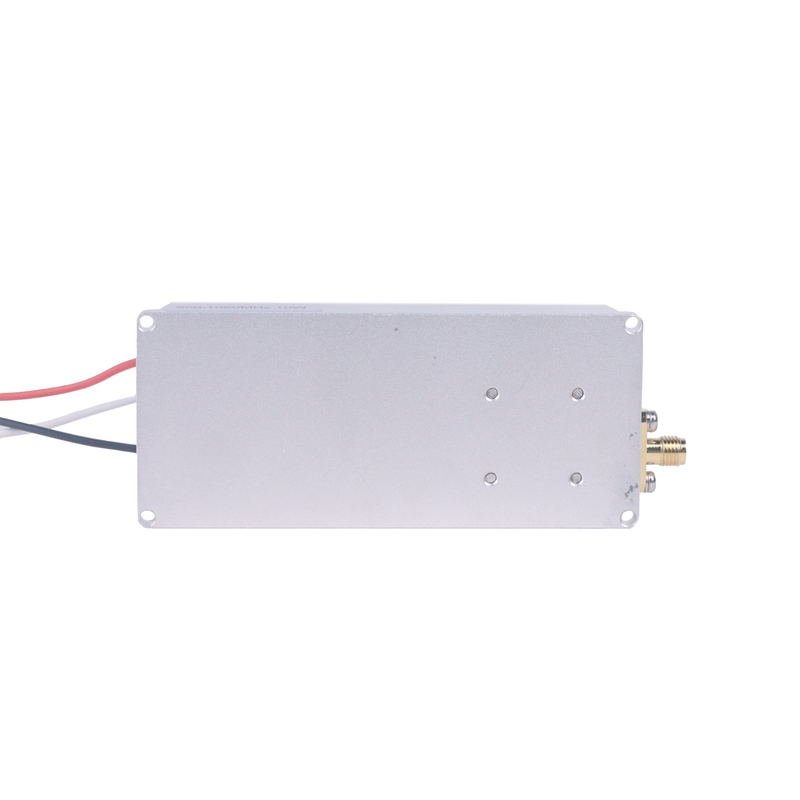

720MHz-840MHz Anti Jamming Device Low Power RF Module 40W

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NX-MD40W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: The price is negotiable

Packaging Details: 60*150*21.5

Delivery Time: 3-5days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000pcs per Month

Get Best Price
Highlight:

720MHz anti jamming device

,

anti jamming device Module

,

40W low power rf module

Model Number:
40W 720-840MHz
Type:
RF Module
Voltage:
28-32V
Size:
60*150*21.5
Weight:
0.15KG
OEM:
Support
Quality Guarantee:
1 YEAR
Output Power:
10W 20W 30W 40W 50W 100W 200W
Model Number:
40W 720-840MHz
Type:
RF Module
Voltage:
28-32V
Size:
60*150*21.5
Weight:
0.15KG
OEM:
Support
Quality Guarantee:
1 YEAR
Output Power:
10W 20W 30W 40W 50W 100W 200W
720MHz-840MHz Anti Jamming Device Low Power RF Module 40W

Description

Introducing the 40W 720-840MHz GAN Anti-Drone RF Module

Protecting your airspace has never been easier with our state-of-the-art 40W 720-840MHz GAN Anti-Drone RF Module. Designed to shield against unwanted UAV intrusions, this device is a must-have for anyone concerned about drone security.

Advanced Technology for Enhanced Protection

Equipped with cutting-edge GAN technology, our RF module delivers unmatched performance and reliability. With a frequency range of  720-840MHz, it effectively detects and intercepts drone signals, preventing them from entering your airspace.

Featuring a powerful 40W output, this module ensures a strong and consistent signal jamming capability, making it an ideal solution for both small and large areas. Whether you need to protect a private property, an event venue, or a sensitive facility, our RF module has you covered.

Designed for ease of use, our RF module can be easily integrated into existing security systems or deployed as a standalone device. Its compact size and lightweight design allow for flexible installation options, ensuring maximum coverage and effectiveness.

Don’t compromise on security. Invest in our 40W 720-840MHz GAN Anti-Drone RF Module and gain peace of mind knowing that your airspace is protected against potential threats. Contact us today to learn more about this innovative solution.

Item name Technical parameters
Working frequency

720-840

MHz (Customizable to any frequency)
Saturated output power 44±1dBm
Gain 44±2dB
In-band fluctuation ≤2.0dB
Out-of-band spurious 9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR ≤1.5
Gain temperature stability ≤±1.5dB
Working voltage DC+28V
Working current 44dBm@≤1.6A
Powersupplymonitoring interface Power supply: power line
Red: power positive, black: power negative, white: power amplifier enabled
Output RF port SMA
Dimensions 117.1×28.5×16mm



720MHz-840MHz Anti Jamming Device Low Power RF Module 40W 0720MHz-840MHz Anti Jamming Device Low Power RF Module 40W 1720MHz-840MHz Anti Jamming Device Low Power RF Module 40W 2720MHz-840MHz Anti Jamming Device Low Power RF Module 40W 3

720MHz-840MHz Anti Jamming Device Low Power RF Module 40W 4720MHz-840MHz Anti Jamming Device Low Power RF Module 40W 5

1. Light
Slim as a wisp of cloud, our module is effortlessly portable. Packed with efficient tech, it empowers with featherlight ease. Unleash freedom at your fingertips.
2. Adjustable
Our modules can adjust the frequency bandwidth within a small range
3. Copper heat sink
Utilizing copper heat dissipation blocks for rapid thermal conductivity and efficient heat dissipation. Ensures sustained, stable device operation with precise te
4. Isolator
Equipped with isolators, our product prevents circuit board damage from empty loads. Precision isolation design ensures safety and reliability, guarding against
