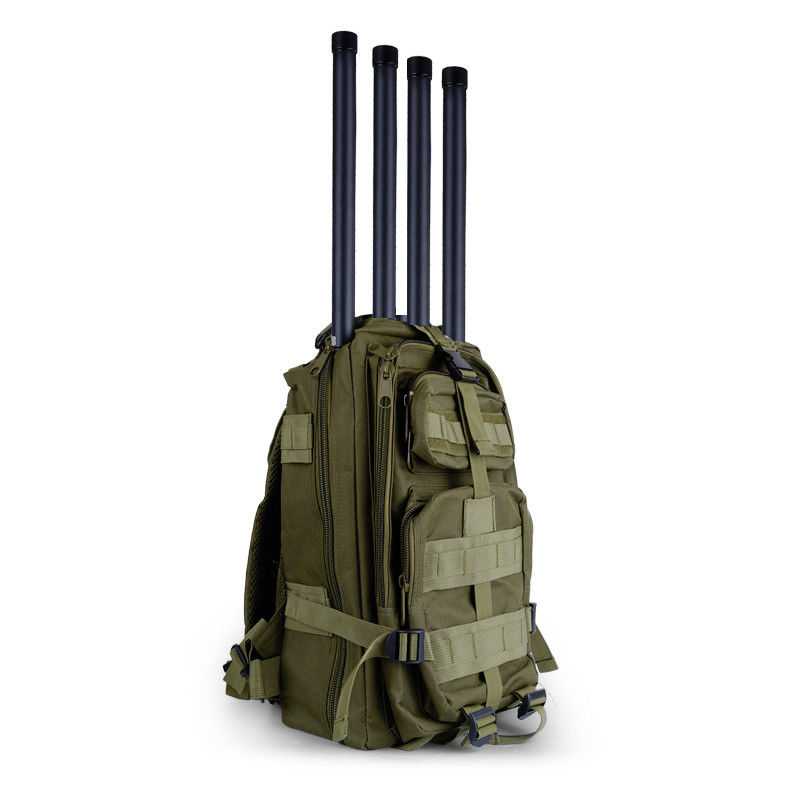

Unmanned Anti Drone Systems Broad Spectrum RF Jammer Backpacks 4 Channel 720-1050MHz

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NX

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: The price is negotiable

Packaging Details: 40X40X75 cm

Delivery Time: 5-8DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Unmanned Anti Drone Systems, Broad Spectrum RF Anti Drone Systems, Backpacks broad spectrum rf jammer


Countermeasure Frequency （Working Frequency）:	433M/800M/900M/1.2G/1.5G/2.4G/5.2G/5.8G （Specific Frequency Can Be Customized）	Countermeasure Power（Output Power）:	Portable Detachable Small Backpack：≤140W Large Black Backpack：≤350W
Battery Capacity:	24V 25A/H	Countermeasure Capacity:	Force To Fly Back
Countermeasure Distance:	500~ 1000m	Countermeasure Angle:	360°
Duration Performance:	60min	Weight:	Portable Detachable Small Backpack ≤8.5Kg Large Black Backpack ≤16Kg

Countermeasure Frequency （Working Frequency）:	433M/800M/900M/1.2G/1.5G/2.4G/5.2G/5.8G （Specific Frequency Can Be Customized）
Countermeasure Power（Output Power）:	Portable Detachable Small Backpack：≤140W Large Black Backpack：≤350W
Battery Capacity:	24V 25A/H
Countermeasure Capacity:	Force To Fly Back
Countermeasure Distance:	500~ 1000m
Countermeasure Angle:	360°
Duration Performance:	60min
Weight:	Portable Detachable Small Backpack ≤8.5Kg Large Black Backpack ≤16Kg

Unmanned Anti Drone Systems Broad Spectrum RF Jammer Backpacks 4 Channel 720-1050MHz

Description

Product Parameters

Portable Backpack style 433mHz, 900mHz, 1.2G, 1.4G, 1.5G, 2.4G 5.2G. 5.8G drone signal equiment uav defense system

High power Manpack drone or mobile phone jammer for cellular phones, GSM 3G 4GLTE/WIMAX 5G Wi-Fi GPS UHF VHF Signals which are currently presented on the market.

Also is middle RF power Drone Jammer model with 6 high gains antennas which bring us a strong jamming ability. Build-in battery can works 60 minutes.And it can defend 100% drones UAVs, like Phantom 4, Phantom 3, FPV

Professional, advanced, standard series, inspire series up to 600-2000meters

NX-XBG-4-120W : Configuration 1
Frequency	Working Frequency	dBm	Channel output power
CH1	720-840MHz	43dBm	20dBm/30KHz(min)
CH2	830-940MHz	47dBm	20dBm/30KHz(min)
CH3	950-1050MHz	43dBm	20dBm/30KHz(min)
CH4	2400-2500MHz	45dBm	20dBm/30KHz(min)

NX-XBG-4-120W : Configuration 2
Frequency	Working Frequency	dBm	Channel output power
CH1	720-840MHz	43dBm	20dBm/30KHz(min)
CH2	830-940MHz	47dBm	20dBm/30KHz(min)
CH3	950-1050MHz	43dBm	20dBm/30KHz(min)
CH4	5725-5850MHz	45dBm	20dBm/30KHz(min)

NX-XBG-4-120W : Configuration 3
Frequency	Working Frequency	dBm	Channel output power
CH1	720-840MHz	47dBm	20dBm/30KHz(min)
CH2	830-940MHz	43dBm	20dBm/30KHz(min)
CH3	2400-2500MHz	43dBm	20dBm/30KHz(min)
CH4	5725-5850MHz	45dBm	20dBm/30KHz(min)

Unmanned Anti Drone Systems Broad Spectrum RF Jammer Backpacks 4 Channel 720-1050MHz 0
