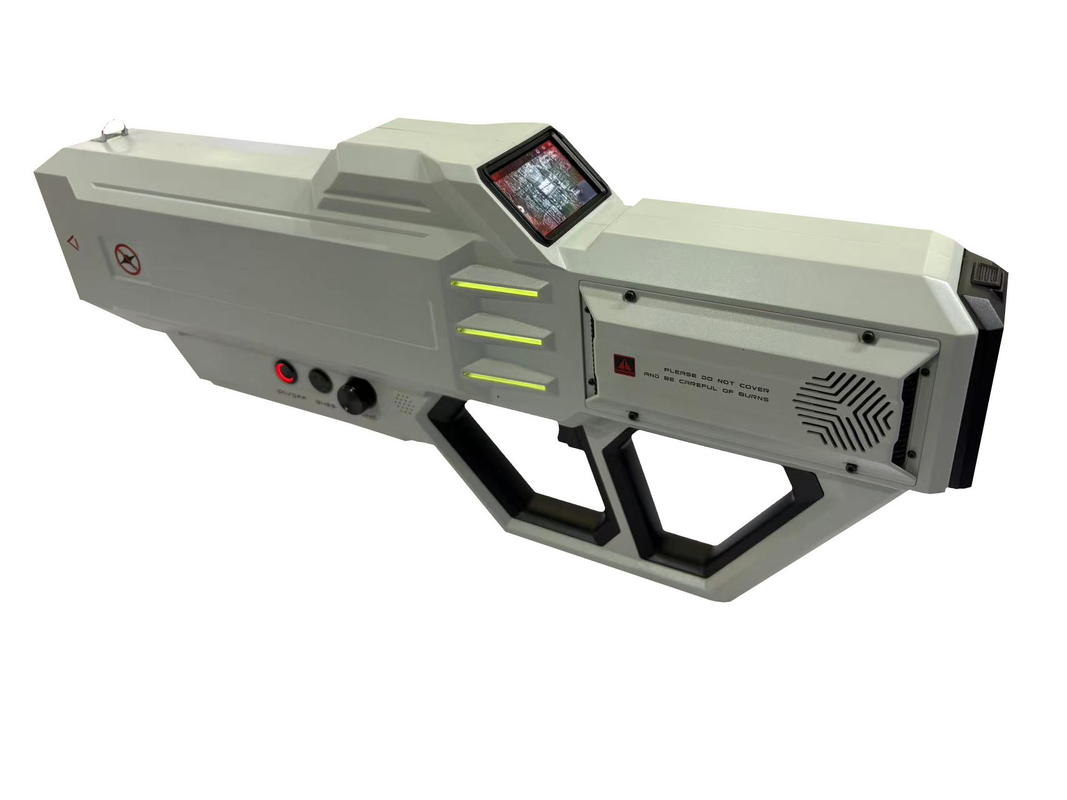

Handheld unmanned aerial vehicle (UAV) strike and reconnaissance equipment

1.  major function

1) Integrated detection, direction finding, positioning and countermeasure: The product integrates detection, direction finding, positioning and countermeasure capabilities. When the position of the target UAV is detected and locked, the countermeasure mode (driving off or forced landing) can be immediately opened to realize the effective disposal of the target.

2) Drone and pilot positioning: It can accurately locate DJI drones and remote controllers with OcuSync2 and OcuSync3 communication protocols.

3) Directional function: It can realize the detection and direction finding function of the target UAV, and present the UAV's azimuth information through the compass.

4) Intrusion alarm: When the equipment detects the intrusion of a UAV, it will give an audio or audio-visual alarm.

5) Drone identification: When the drone is turned on and enters the detection state, when the target drone is detected, the drone model, frequency and other information can be displayed in the detection list.

6) Battery design: The battery adopts a detachable design, which can extend the endurance of the equipment by changing the battery quickly.

2.  performance index

Detection performance

1) Detection and identification of UAV models: DJI, Daotong, Puzhou, Haoxiang and other common brand UAVs and drones can be expanded in the model library.

2) The UAV models that can be located are DJI O2 and O3 video transmission protocol UAV.

3) Detection frequency band: 433MHz, 845MHz, 915MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz.

4) Detection distance: 500m-2500m (depending on the environment).

5) Location distance: 500m-2000m (affected by environment and model factors).

6) Directional error: less than or equal to 30° (RMS).

7) Position accuracy: less than or equal to 10m.

Countermeasures

1) Countermeasure band:

900M band (power amplifier power 30W)

1.4G band (power amplifier 30W)

2.4G band (power amplifier power 30W)

5.2G band (power amplifier power 30W)

5.8G band (power amplifier power 30W)

1.5G band (power amplifier 10W)

300M-6G (power amplifier power 20W, support software self-customization)

2) Counterattack distance: 500m-1500m (affected by environmental factors).

Mechanical indicators

1) Weight: 6KG

2) Size: L*W*H 685mm*298mm*110mm.
