NXPA4000-8000MHz-15W Broadband Power RF Amplifier Module For Communication Radar System

Name: NXPA4000-8000MHz-15W Broadband Power RF Amplifier Module For Communication Radar System
Brand: Nengxun Communication Technology Co.,Ltd.
SKU: NXPA4000-8000MHz-15W
Price: 2,250.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NXPA4000-8000MHz-15W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: The price is negotiable

Packaging Details: 25.6*111.7*17MM

Delivery Time: 5-8DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                15W RF Amplifier Module, 8000MHz RF Amplifier Module, 15W broadband rf power amplifier module


Frequency:	NXPA4000-8000MHz-15W	Dimensions(mm)/Weight:	≤171×95×25.5 (without Connectors), ≤600g
Max Output Power (CW):	≥50dbm	Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

Frequency:	NXPA4000-8000MHz-15W
Dimensions(mm)/Weight:	≤171×95×25.5 (without Connectors), ≤600g
Max Output Power (CW):	≥50dbm
Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

NXPA4000-8000MHz-15W Broadband Power RF Amplifier Module For Communication Radar System

PN:NXPA4000-8000MHz-15W

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

Parameters
Frequency	4000MHz~8000MHz
Max output Power (CW)	≥ 42dBm
Gain	≥ 42dB (customized)
Gain Flatness	≤ 2±1dB
Input power	2±1dBm
Input VSWR	≤ 1.7
Temperature protection	Over 80℃ protection
PTT port	Default off; 3.3~5V on
VCC/Current reference	28V/4A
Working voltage	+28V~ +30V
Working current	≤ 3.5A
Spurious	≤ -65dBc
Harmonic	harmonics Worst point≤ -20dBc
Operating Temperature	-30℃~+55℃
RF Connector	SMA-F
Power Supply Interface	feedthru capacitor
Dimensions(mm)/Weight	≤115x76.5x25.5 (without connectors), ≤500g
Installation method	Radiator shall be installed for power amplifier test
Package	1pcs/box

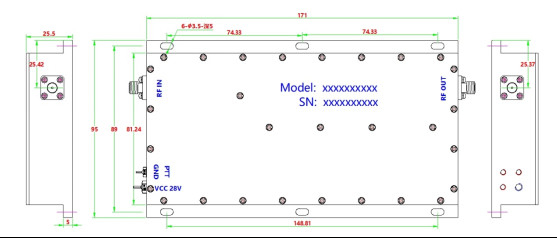

Outline Drawing

NXPA4000-8000MHz-15W Broadband Power RF Amplifier Module For Communication Radar System 0

Support and Services:

RF Power Amplifier Technical Support and Services

Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
Provide troubleshooting and repair services.
Provide replacement parts and components.
Answer customer inquiries and provide product information.
Provide technical training for customers.
Provide warranty service.
