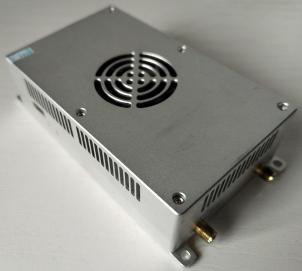

Detection Range Up to 5km FuryLink Anti-Jamming Communication System Customizable Output Power

Name: Detection Range Up to 5km FuryLink Anti-Jamming Communication System Customizable Output Power
Brand: Nengxun Communication Technology Co.,Ltd.
SKU: NX-FuryLink
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NX-FuryLink

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: 130×70×34.5mm

Delivery Time: 7DAYS

Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                FuryLink Anti-Jamming Communication System, 5km Anti-Jamming Communication System


Detection Range:	Up To 5km	Detection Method:	Radar And Radio Frequency
Control System:	Remote Control Or Mobile App	Interception Method:	Jamming And Spoofing
Frequency Range:	2.4GHz-5.8GHz	Warranty:	1 Year
Installation:	Portable Or Fixed	Material:	GaN
Mounting Options:	Tripod Or Vehicle Mount	Power Output:	Up To 100W
Customizable Frequency:	Yes	Power:	5W 10W 20W 40W 50W 100W
Customizable Output Power:	Yes	Power Supply:	AC 100-240V, 50/60Hz
Fcc Certification:	Yes

Detection Range:	Up To 5km
Detection Method:	Radar And Radio Frequency
Control System:	Remote Control Or Mobile App
Interception Method:	Jamming And Spoofing
Frequency Range:	2.4GHz-5.8GHz
Warranty:	1 Year
Installation:	Portable Or Fixed
Material:	GaN
Mounting Options:	Tripod Or Vehicle Mount
Power Output:	Up To 100W
Customizable Frequency:	Yes
Power:	5W 10W 20W 40W 50W 100W
Customizable Output Power:	Yes
Power Supply:	AC 100-240V, 50/60Hz
Fcc Certification:	Yes

Detection Range Up to 5km FuryLink Anti-Jamming Communication System Customizable Output Power

Introduction
The FuryLink Anti-Jamming Communication System is a 30km-range broadband solution designed for secure, interference-resistant transmission of video, data, and control signals. Built on a software-defined radio (SDR) architecture with TDD-TDMA networking, it leverages advanced technologies like real-time spectrum sensing, 2000-hop/second fast frequency hopping, and superheterodyne receivers to ensure reliable connectivity in high-interference environments. Ideal for UAVs, surveillance systems, and mission-critical applications across industries such as low-altitude economy, public safety, and utilities.

Key Features

Robust Anti-Jamming Capabilities
- 2000 Hop/Second Adaptive FHSS: Automatically adjusts frequency patterns to avoid interference.
- 200MHz Bandwidth (400MHz customizable) for flexible spectrum usage.
- 60dB Interference Tolerance: Resists out-of-band and 90% in-band interference.
High-Performance Networking
- Star/P2P Topology: Supports point-to-point or 1:4 node star configurations.
- TDD-TDMA Protocol: Optimizes bandwidth allocation for up to 4 simultaneous users.
- Low Latency: ≤10ms one-way delay for real-time command/control.
Multi-Service Integration
- Dual-Channel Transmission: Simultaneous Ethernet/serial data and HD video.
- AES-128 Encryption: Ensures data security in sensitive operations.
- Plug-and-Play: Seamless integration with UAVs, cameras, and industrial systems.
Compact & Rugged Design
- 322g Ultra-Lightweight: Suitable for airborne/portable deployments.
- -40°C to +60°C Operation: Withstands extreme environmental conditions.
- Automatic Antenna Switching: Mitigates signal blockage in dynamic scenarios.

Technical Specifications

Parameter	Details
Frequency Range	1300–1500MHz (customizable: 1100–1500MHz/UHF/S/C)
Data Rate	Video: 12Mbps (1:1) / 2.9Mbps/user (1:4) Control: 150kbps (broadcast)
Communication Range	30km (line-of-sight, interference-free)
Modulation	COFDM-BPSK/QPSK
Power Consumption	≤25W transmit / 12W receive
Dimensions	130×70×34.5mm (installation size)
Antenna Options	2dBi (airborne) / 6dBi (ground) omnidirectional

Applications

UAV command & control
Remote surveillance & monitoring
Smart grid/transportation infrastructure
Emergency response networks
Defense & public security operations

Why Choose FuryLink?

Unmatched Reliability: Combines frequency hopping, spectrum sensing, and adaptive power control.
Scalable Architecture: Supports expansion from single-point to multi-node networks.
Cost-Effective: Balances long-range performance with lightweight design.
Global Compliance: Customizable for regional frequency regulations.

Secure Your Airwaves
Elevate your communication resilience with FuryLink—the ultimate anti-jamming solution for critical missions.
