NXPA2000 4000MHz 100W UHF Power Amplifier Module RF Jamming System

Name: NXPA2000 4000MHz 100W UHF Power Amplifier Module RF Jamming System
Brand: Nengxun Communication Technology Co.,Ltd.
SKU: NXPA2000-3000MHz-100W
Price: 2,250.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NXPA2000-3000MHz-100W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: The price is negotiable

Packaging Details: 25.6*111.7*17MM

Delivery Time: 5-8DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                4000MHz uhf power amplifier module, RF Jamming uhf power amplifier module, UHF rf jamming system


Frequency:	NXPA2000-4000MHz-100W	Dimensions(mm)/Weight:	206×132×27.3mm (without Connectors), ≤2.06KG
Max Output Power (CW):	≥ 49DBm	Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

Frequency:	NXPA2000-4000MHz-100W
Dimensions(mm)/Weight:	206×132×27.3mm (without Connectors), ≤2.06KG
Max Output Power (CW):	≥ 49DBm
Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

NXPA2000 4000MHz 100W UHF Power Amplifier Module RF Jamming System

PN:NXPA2000-4000MHz-100W

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

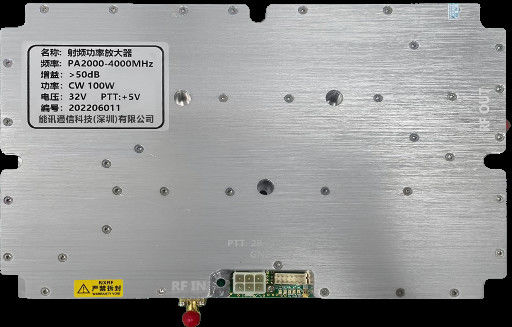

NXPA2000 4000MHz 100W UHF Power Amplifier Module RF Jamming System 0

Parameters
Frequency	2000MHz~4000MHz
Max output Power (CW)	≥ 50dBm
Gain	≥ 49dB (customized)
Gain Flatness	≤ 2±1dB
Input power	2±1dBm
Input VSWR	≤ 1.7
Temperature protection	Over 80℃ protection
PTT port	Default off; 3.3~5V on
VCC/Current reference	32V/16.8A
Working voltage	+28V~ +32V
Working current	≤ 12-13.8A
Spurious	≤ -65dBc
Harmonic	harmonics Worst point≤ -10dBc
Operating Temperature	-30℃~+55℃
RF Connector	SMA-F
Power Supply Interface	feedthru capacitor
Dimensions(mm)/Weight	206×132×27.3mm (without connectors), ≤2.06KG
Installation method	Radiator shall be installed for power amplifier test
Package	1pcs/box

Outline Drawing

NXPA2000 4000MHz 100W UHF Power Amplifier Module RF Jamming System 1

Support and Services:

RF Power Amplifier Technical Support and Services

Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
Provide troubleshooting and repair services.
Provide replacement parts and components.
Answer customer inquiries and provide product information.
Provide technical training for customers.
Provide warranty service.
