Name: 3600MHz 50W RF Power Module Signal Amplifier NXPA3300 OEM
Brand: Nengxun Communication Technology Co.,Ltd.
SKU: NXPA3300-3600MHz50W
Price: 2,250.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NXPA3300-3600MHz50W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: The price is negotiable

Packaging Details: 25.6*111.7*17MM

Delivery Time: 5-8DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                3600MHz rf power module, OEM rf power module, OEM rf signal amplifier


Frequency:	NXPA3300-3600MHz50W	Dimensions(mm)/Weight:	≤200×84.5×25.5mm (without Connectors), ≤640G
Max Output Power (CW):	≥ 47DBm	Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

Frequency:	NXPA3300-3600MHz50W
Dimensions(mm)/Weight:	≤200×84.5×25.5mm (without Connectors), ≤640G
Max Output Power (CW):	≥ 47DBm
Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

3600MHz 50W RF Power Module Signal Amplifier NXPA3300 OEM

PN:NXPA3300-3600MHz50W

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

3600MHz 50W RF Power Module Signal Amplifier NXPA3300 OEM 0

Parameters
Frequency	3300MHz~3600MHz
Max output Power (CW)	≥ 47dBm
Gain	≥ 46dB (customized)
Gain Flatness	≤ 1±1dB
Input VSWR	≤ 2.0
Input power	1±1dBm
Max Input	+6dBm
Temperature protection	Over 80℃ protection,with open circuit protection
PTT port	Default off; 3.3~5V on
VCC/Current reference	28V/10A
Working voltage	+28V~ +32V
Working current	≤ 7~8A
Spurious	≤ -65dBc
Harmonic	≤ -25dBc
Operating Temperature	-40℃~+55℃
RF Connector	RFIN-SMA-F/ RFOUT-SMA-F
Power Supply Interface	5557-4.2mm power-6
Dimensions(mm)/Weight	≤200×84.5×25.5mm (without connectors), ≤640G
Installation method	Radiator shall be installed for power amplifier test
Package	1pcs/box

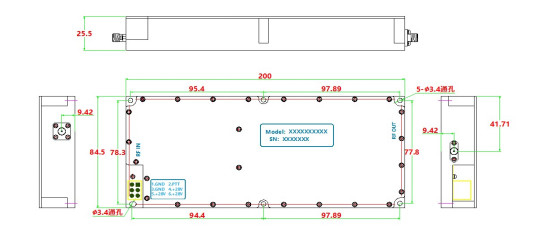

Outline Drawing

3600MHz 50W RF Power Module Signal Amplifier NXPA3300 OEM 1

Support and Services:

RF Power Amplifier Technical Support and Services

Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
Provide troubleshooting and repair services.
Provide replacement parts and components.
Answer customer inquiries and provide product information.
Provide technical training for customers.
Provide warranty service.
