Name: NXPA5100 RF UHF VHF Power Amplifier Module 100W 5900MHz
Brand: Nengxun Communication Technology Co.,Ltd.
SKU: NXPA5100-5900MHz-100W
Price: 2,250.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: NENGXUN

Model Number: NXPA5100-5900MHz-100W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: The price is negotiable

Packaging Details: 25.6*111.7*17MM

Delivery Time: 5-8DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                RF UHF vhf power amplifier module, 5900MHz vhf power amplifier module, 5900MHz uhf rf amplifier


Frequency:	NXPA5100-5900MHz-100W	Dimensions(mm)/Weight:	≤197×93.5×26.5mm (without Connectors), ≤650g), ≤1.5KG
Max Output Power (CW):	≥ 50dbm	Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

Frequency:	NXPA5100-5900MHz-100W
Dimensions(mm)/Weight:	≤197×93.5×26.5mm (without Connectors), ≤650g), ≤1.5KG
Max Output Power (CW):	≥ 50dbm
Temperature Protection:	Over 80℃ Protection，with Open Circuit Protection

NXPA5100 RF UHF VHF Power Amplifier Module 100W 5900MHz

PN:NXPA5100-5900MHz-100W

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

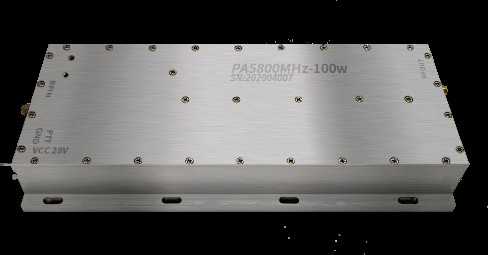

NXPA5100 RF UHF VHF Power Amplifier Module 100W 5900MHz 0

Parameters
Frequency	5000MHz~6000MHz
Max output Power (CW)	≥ 47dBm
Gain	≥ 46dB (customized)
Gain Flatness	≤ 2±1dB
Input power	2±1dBm
Input VSWR	≤ 1.7
Temperature protection	Over 80℃ protection
PTT port	Default off; 3.3~5V on
VCC/Current reference	30V/12A
Working voltage	+28V~ +30V
Working current	≤ 7-8A
Spurious	≤ -65dBc
Harmonic	harmonics Worst point≤ -20dBc
Operating Temperature	-30℃~+55℃
RF Connector	SMA-F
Power Supply Interface	feedthru capacitor
Dimensions(mm)/Weight	≤232.3×106×24.5 (without connectors), ≤1.5KG
Installation method	Radiator shall be installed for power amplifier test
Package	1pcs/box

Outline Drawing

NXPA5100 RF UHF VHF Power Amplifier Module 100W 5900MHz 1
